d******* 1~4mm

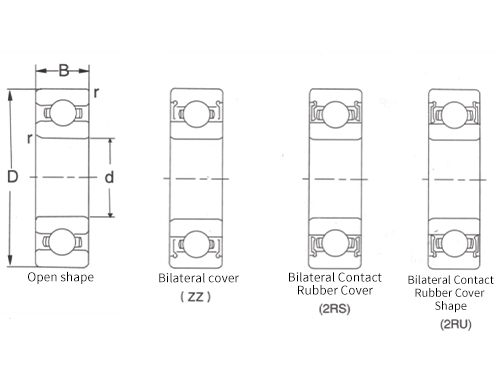

Pr*******aecipuae Dimensiones (mm) | Flexilis cap | Cap ferreum | Exemplar | Basic dynamic onus rating | Basic onus static rating | Reference pondus (g) | |||||||
d | D | B | r | B1 | r1 | Open | Cap ferreum | Contactus cap | Non-Contactususususususus | Cr(N) | Cor(N) | Open | Flexilis operimentum genus Cap ferreum genus |
1 | 3 | 1.0 | 0.05 | 1.5 | 0.05 | 681 | 681 ZZ | / | / | 80 | 23 | 0.08 | |
3 | 1.5 | 0.05 | / | / | MR31 | / | / | / | 80 | 23 | 0.07 | ||
4 | 1.6 | 0.10 | 2.3 | 0.10 | 691 | 691 ZZ | / | / | 140 | 36 | 0.10 | ||
1.2 | 4 | 1.8 | 2.50 | 0.1 | 0.10 | MR41 X | MR41 XZZ | / | / | 138 | 35 | 0.10 | 0.14 |
1.5 | 4 | 1.2 | 0.05 | 2.0 | 0.05 | 68/1.5 | 68/1.5 ZZ | / | / | 112 | 33 | 0.07 | 0.11 |
5 | 2.0 | 0.15 | 2.6 | 0.15 | 69/1.5 | 69/1.5 ZZ | / | / | 240 | 69 | 0.17 | 0.19 | |
6 | 2.5 | 0.15 | 3.0 | 0.15 | 60/1.5 | 60/1.5 ZZ | / | / | 330 | 99 | 0.31 | 0.36 | |
2 | 4 | 1.2 | 0.05 | 2.0 | 0.06 | 672 | 672 ZZ | / | / | 104 | 37 | 0.10 | 0.14 |
5 | 1.5 | 0.08 | 2.3 | 0.08 | 682 | 682 ZZ | / | / | 188 | 59 | 0.12 | 0.17 | |
5 | 2.0 | 0.10 | 2.5 | 0.10 | MR52 | MR52 ZZ | / | / | 188 | 59 | 0.16 | 0.22 | |
6 | 2.3 | 0.15 | 3.0 | 0.15 | 692 | 692 ZZ | / | / | 330 | 99 | 0.28 | 0.38 | |
6 | 2.5 | 0.15 | 2.5 | 0.15 | MR62 | MR62 ZZ | / | / | 330 | 99 | 0.28 | 0.33 | |
7 | 2.5 | 0.15 | 3.0 | 0.15 | MR72 | MR72 ZZ | / | / | 385 | 128 | 0.43 | 0.47 | |
7 | 2.8 | 0.15 | 3.5 | 0.15 | 602 | 602 ZZ | / | / | 385 | 128 | 0.51 | 0.58 | |
2.5 | 5 | 1.5 | 0.08 | / | / | 67/2.5 | 67/2.5 ZZ | / | / | 153 | 59 | 0.11 | 0.11 |
6 | 1.8 | 0.08 | 2.3 | 0.08 | 68/2.5 | 68/2.5 ZZ | / | / | 209 | 73 | 0.23 | 0.29 | |
7 | 2.5 | 0.15 | 2.6 | 0.08 | 69/2.5 | 69/2.5 ZZ | / | / | 385 | 128 | 0.40 | 0.55 | |
8 | 2.5 | 0.20 | 3.5 | 0.15 | MR82 X | MR82 XZZ | / | / | 560 | 179 | 0.52 | ||
8 | 2.8 | 0.15 | / | / | 60/2.5 | 60/2.5 ZZ | / | / | 550 | 175 | 0.63 | 0.83 | |
3 | 6 | 2.0 | 0.08 | 4.0 | 0.15 | 673 | 673 ZZ | / | / | 209 | 73 | 0.19 | 0.28 |
7 | 2.0 | 0.10 | 2.5 | 0.08 | 683 | 683 ZZ | / | / | 385 | 129 | 0.32 | 0.43 | |
8 | 2.5 | 0.15 | 3.0 | 0.10 | MR83 | / | / | / | 560 | 179 | 0.51 | ||
8 | 3.0 | 0.15 | 4.0 | 0.15 | 693 | 693 ZZ | / | / | 56 | 179 | 0.61 | 0.83 | |
9 | 2.5 | 0.20 | 4.0 | 0.15 | MR93 | MR93 ZZ | / | / | 640 | 226 | 0.68 | 1.18 | |
9 | 3.0 | 0.15 | 5.0 | 0.15 | 603 | 603 ZZ | / | 640 | 226 | 0.84 | 1.20 | ||
10 | 4.0 | 0.15 | 4.0 | 0.15 | 623 | 623 ZZ | / | / | 615 | 226 | 1.65 | 1.66 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 633 | 633 ZZ | / | / | 1300 | 485 | 3.38 | 3.33 | |
4 | 7 | 2.0 | 0.08 | 2.5 | 0.08 | 674 | 674 ZZ | / | / | 315 | 115 | 0.21 | 0.29 |
8 | 2.0 | 0.15 | 3.0 | 0.10 | MR84 | MR84 ZZ | / | / | 395 | 140 | 0.33 | 0.56 | |
9 | 2.5 | 0.10 | 4.0 | 0.10 | 684 | 684 ZZ | / | / | 640 | 226 | 0.63 | 1.01 | |
10 | 3.0 | 0.20 | 4.0 | 0.15 | MR104 | MR104 ZZ | / | / | 650 | 236 | 0.95 | 1.33 | |
11 | 4.0 | 0.15 | 4.0 | 0.15 | 694 | 694 ZZ | 694-2RS | 694-2RU | 715 | 283 | 1.70 | 1.75 | |
12 | 4.0 | 0.20 | 4.0 | 0.20 | 604 | 604 ZZ | 604-2RS | 604-2RU | 970 | 360 | 2.25 | 2.29 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 624 | 624 ZZ | 624-2RS | 624-2RU | 1300 | 485 | 2.97 | 3.04 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 634 | 634 ZZ | 634-2RS | 634-2RU | 1740 | 670 | 5.00 | 5.21 |
d 5~15mm
Praecipuae Dimensiones (mm) | Flexilis cap | Cap ferreum | Exemplar | Basic dynamic onus rating | Basic onus static rating | Reference pondus (g) | |||||||
d | D | B | r | B1 | r1 | Open | Cap ferreum | Contactus cap | Non-Contact | Cr(N) | Cor(N) | Open | Flexilis operimentum genus Cap ferreum genus |
5 | 8 | 2.0 | 0.08 | 2.5 | 0.08 | 675 | 675 ZZ | / | / | 278 | 131 | 0.25 | 0.34 |
9 | 2.5 | 0.15 | 3.0 | 0.15 | MR95 | MR95 ZZ | / | / | 435 | 168 | 0.48 | 0.54 | |
10 | 3.0 | 0.15 | 4.0 | 0.15 | MR105 | MR105 ZZ | / | / | 435 | 168 | 0.90 | 1.29 | |
11 | 3.0 | 0.15 | 5.0 | 0.15 | 685 | 685 ZZ | 685-2RS | 685-2RU | 715 | 283 | 1.20 | 1.95 | |
13 | 4.0 | 0.20 | 4.0 | 0.20 | 695 | 695 22 | 695-2RS | 695-2RU | 1080 | 430 | 2.40 | 2.5 | |
14 | 5.0 | 0.20 | 5.0 | 0.20 | 605 | 605 ZZ | 605-2RS | 605-2RU | 1330 | 505 | 3.54 | 4 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 625 | 625 ZZ | 625-2RS | 625-2RU | 1730 | 670 | 4.95 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 635 | 635 22 | 635-2RS | 635-2RU | 2620 | 1060 | 8.53 | 9 | |
6 | 10 | 2.5 | 0.10 | 3.0 | 0.10 | 675 | 675 ZZ | / | / | 495 | 219 | 0.53 | 0.9 |
12 | 3.0 | 0.20 | 4.0 | 0.15 | MR126 | MR126 ZZ | / | / | 715 | 292 | 1.20 | 1.6 | |
13 | 3.5 | 0.15 | 5.0 | 0.15 | 686 | 686 ZZ | 686-2RS | 686-? RU | 1080 | 440 | 1.90 | 2.5 | |
15 | 5.0 | 0.20 | 5.0 | 0.20 | 696 | 696 ZZ | 696-2RS | 696-2RU | 1740 | 670 | 3.79 | 3.9 | |
17 | 6.0 | 0.30 | 6.0 | 0.30 | 606 | 606 ZZ | 606-2RS | 606-2HU | 2260 | 840 | 5.94 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 626 | 626 22 | 626-2RS | 626-2RU | 2620 | 1060 | 7.97 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 636 | 636 ZZ | 636 2RS | 636-2RU | 3300 | 1360 | 13.00 | 13 | |
7 | 11 | 2.5 | 0.10 | 3.0 | 0.10 | 677 | 677 22 | / | / | 455 | 201 | 0.59 | 0.71 |
13 | 3.0 | 0.20 | 4.0 | 0.15 | MR137 | MR137 ZZ | / | / | 830 | 375 | 1.50 | 1.98 | |
14 | 3.5 | 0.15 | 5.0 | 0.15 | 687 | 687 ZZ | 687-2RS | 687-2RU | 1170 | 510 | 2.00 | 2.97 | |
17 | 5.0 | 0.30 | 5.0 | 0.30 | 697 | 697 ZZ | 697-2RS | 697-2RU | 1610 | 715 | 4.80 | 5.01 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 607 | 607 ZZ | 607-2RS | 607-2RU | 2620 | 1060 | 7.67 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 627 | 627 ZZ | 627-2RS | 627-2RU | 3300 | 1360 | 12.00 | 12 | |
26 | 9.0 | 0.30 | 9.0 | 0.30 | 637 | 637 ZZ | 637-2RS | 637-2RU | 4000 | 1580 | 24.00 | 25 | |
8 | 12 | 2.5 | 0.10 | 3.5 | 0.10 | 678 | B78 22 | / | / | 535 | 271 | 0.70 | 0.95 |
14 | 3.5 | 0.20 | 4.0 | 0.15 | MR148 | MR148 ZZ | / | / | 820 | 385 | 1.90 | 2.12 | |
16 | 4.0 | 0.20 | 5.0 | 0.20 | 688 | BA8 22 | 688-2RS | 688-2RU | 1250 | 590 | 3.00 | 3.7 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 698 | 698 ZZ | 698-2RS | 698-2RU | 2240 | 905 | 7.18 | 7.2 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 608 | 608 ZZ | 608-2RS | 608-2RU | 3300 | 1360 | 12.00 | 12 | |
24 | 8.0 | 0.30 | 8.0 | 0.30 | 628 | 628 22 | 628-2RS | B28-2RU | 3350 | 1410 | 17.00 | 17.3 | |
28 | 9.0 | 0.30 | 9.0 | 0.30 | 638 | 638 ZZ | 638-2RS | 638-2RU | 4550 | 1970 | 27.00 | 28.6 | |
9 | 14 | 3.0 | 0.10 | 4.5 | 0.10 | 679 | 679 ZZ | / | / | 930 | 470 | 1.35 | 1.98 |
17 | 4.0 | 0.20 | 5.0 | 0.20 | 689 | 689 ZZ | 689-2RS | 689-2RU | 1730 | 810 | 3.53 | 4.43 | |
20 | 6.0 | 0.30 | 6.0 | 0.30 | 699 | 699 ZZ | 699-2RS | 699-2RU | 2120 | 985 | 8.33 | 8.45 | |
24 | 7.0 | 0.30 | 7.0 | 0.30 | 609 | 609 ZZ | 609-2RS | 609-2RU | 3350 | 1410 | 14.50 | 14.6 | |
26 | 8.0 | 0.30 | 8.0 | 0.30 | 629 | 629 22 | 629-2RS | 629-2RU | 4550 | 1970 | 19.50 | 20 | |
30 | 10 | 0.60 | 10 | 0.60 | 639 | 639 ZZ | 639-2RS | 639-2RU | 5100 | 2390 | 34.00 | 36 |
d 5~15mm
Praecipuae Dimensiones (mm) | Exemplar | Cr(N) | Cor(N) | pondus (g) | ||||||
d | D | B | r | Open | Cap ferreum | Contactus cap | Non-Contact | |||
10 | 15 | 3 | 0.1 | 6700 | 6700 ZZ | 6700-2RS | 6700-2RU | 1010 | 555 | 0.0015 |
19 | 5 | 0.3 | 6800 | 6800 ZZ | 6800-2RS | 6800-2RU | 1840 | 925 | 0.005 | |
19 | 7 | 0.3 | 63800 | 63800 ZZ | 63800-2RS | 63800-2RU | 1840 | 925 | 0.0074 | |
22 | 6 | 0.3 | 6900 | 6900 ZZ | 6900-2RS | 6900-2RU | 2700 | 1270 | 0.009 | |
26 | 8 | 0.3 | 6000 | 6000 ZZ | 6000-2RS | 6000-2RU | 4550 | 1970 | 0.019 | |
26 | 12 | 0.5 | 63000 | / | 63000-2RS | / | 4620 | 1960 | 0.025 | |
28 | 8 | 0.3 | 16100 | / | / | / | 4620 | 1960 | 0.022 | |
30 | 9 | 0.6 | 6200 | 6200 ZZ | 6200-2RS | 6200-2RU | 5100 | 2390 | 0.032 | |
30 | 14 | 1 | 62200 | / | 62200-2RS | / | 5070 | 2360 | 0.04 | |
30 | 14.3 | 1 | 63200 | / | 63200-2RS | / | 5146 | 2350 | 0.046 | |
35 | 11 | 0.6 | 6300 | 6300 ZZ | 6300-2RS | 6300-2RU | 8100 | 3450 | 0.053 | |
35 | 17 | 1 | 62300 | / | 62300-2RS | / | 8060 | 3400 | 0.06 | |
35 | 19.05 | 0.6 | 63300 | / | 63300-2RS | / | 8095 | 3565 | 0.105 | |
37 | 12 | 0.6 | 6400 | / | / | / | 9000 | 4650 | / | |
12 | 18 | 4 | 0.2 | 6701 | 6701 ZZ | 6701-2RS | 6701-2RU | 1070 | 6555 | 0.003 |
21 | 5 | 0.3 | 6801 | 6801 ZZ | 6801-2RS | 6801-2RU | 1900 | 1040 | 0.006 | |
21 | 7 | 0.3 | 63801 | 63801 ZZ | 63801-2RS | 63801-2RU | 1900 | 1040 | 0.0085 | |
24 | 6 | 0.3 | 6901 | 6901 ZZ | 6901-2RS | 6901-2RU | 2900 | 1460 | 0.011 | |
28 | 7 | 0.3 | 16001 | / | / | / | 5100 | 2400 | 0.024 | |
28 | 8 | 0.3 | 6001 | 6001 ZZ | 6001-2RS | 6001-2RU | 5100 | 2390 | 0.023 | |
28 | 12 | 0.5 | 63001 | / | 63001-2RS | / | 5070 | 2360 | 0.029 | |
30 | 8 | 0.3 | 16101 | / | / | / | 5070 | 2360 | 0.023 | |
32 | 10 | 0.6 | 6201 | 6201 ZZ | 6201-2RS | 6201-2RU | 6800 | 3050 | 0.037 | |
32 | 14 | 1 | 62201 | / | 62201-2RS | / | 6890 | 3100 | 0.046 | |
32 | 15.9 | 1 | 63201 | / | 63201-2RS | / | 7000 | 3050 | 0.055 | |
37 | 12 | 1 | 6301 | 6301 ZZ | 6301-2RS | 6301-2RU | 9800 | 4250 | 0.06 | |
37 | 1700 | 1.5 | 62301 | / | 62301-2RS | / | 9750 | 4150 | 0.074 | |
37 | 1905 | 1 | 63301 | / | 63301-2RS | / | 9705 | 4360 | 0.114 | |
42 | 13 | 1 | 6401 | / | / | / | 11600 | 5150 | 0.048 | |
15 | 21 | 4 | 0.2 | 6702 | 6702 ZZ | 6702-2RS | 6702-2RU | 1150 | 790 | 0.0035 |
24 | 5 | 0.3 | 6802 | 6802 ZZ | 6802-2RS | 6802-2RU | 2080 | 1260 | 0.007 | |
24 | 7 | 0.3 | 63802 | 63802 ZZ | 63802-2RS 63802-2RU | 2080 | 1260 | 0.01 | ||
28 | 7 | 0.3 | 6902 | 6902 ZZ | 6902-2RS | 6902-2RU | 4300 | 2250 | 0.016 | |
32 | 8 | 0.3 | 16002 | / | / | / | 5600 | 2840 | 0.025 | |
32 | 9 | 0.3 | 6002 | 6002 ZZ | 6002-2RS | 6002-2RU | 5600 | 2840 | 0.032 | |
32 | 13 | 0.5 | 63002 | / | 63002-2RS | / | 5590 | 2850 | 0.042 | |
35 | 11 | 0.6 | 6202 | 6202 ZZ | 6202-2RS | 6202-2RU | 7650 | 3700 | 0.045 | |
35 | 14 | 1 | 62202 | / | 62202-2RS | / | 7800 | 3750 | 0.056 | |
35 | 15.9 | 1 | 63202 | / | 63202-2RS | / | 8000 | 3600 | 0.068 | |
42 | 13 | 1 | 6302 | 6302 ZZ | 6302-2RS | 6302-2RU | 11400 | 5400 | 0.082 | |
42 | 17 | 1.5 | 62302 | / | 62302-2RS | / | 11400 | 5400 | 0.11 | |
42 | 19 | 1.5 | 63302 | / | 63302-2RS | / | 8232 | 4900 | 0.152 | |
52 | 15 | 1.1 | 6402 | / | / | / | 15900 | 7300 | 0.137 |
d 17~35mm
Praecipuae Dimensiones (mm) | Exemplar | Cr(N) | Cor(N) | pondus (g) | ||||||
d | D | B | r | Open | Cap ferreum | Contactus cap | Non-Contact | |||
17 | 23 | 4 | 0.2 | 6703 | 6703 ZZ | 6703-2RS | 6703-2RU | 1200 | 865 | 0.004 |
26 | 5 | 0.3 | 6803 | 6803 ZZ | 6803-2RS | 6803-2RU | 2630 | 1570 | 0.008 | |
26 | 7 | 0.3 | 63803 | 63803 ZZ | 63803-2RS | 63803-2RU | 2630 | 1570 | 0.011 | |
30 | 7 | 0.3 | 6903 | 6903 ZZ | 6903-2RS | 6903-2RU | 4600 | 2550 | 0.018 | |
35 | 8 | 0.3 | 16003 | / | / | / | 6000 | 3250 | 0.032 | |
35 | 10 | 0.3 | 6003 | 6003 ZZ | 6003-2RS | 6003-2RU | 6000 | 3250 | 0.039 | |
35 | 14 | 0.5 | 63003 | / | 63003-2RS | / | 6050 | 3250 | 0.051 | |
40 | 12 | 0.6 | 6203 | 6203 ZZ | 6203-2RS | 6203-2RU | 9550 | 4800 | 0.065 | |
40 | 16 | 1 | 62203 | / | 62203-2RS | / | 9560 | 4750 | 0.085 | |
40 | 17.5 | 1 | 63203 | / | 63203-2RS | / | 9200 | 4500 | 0.09 | |
47 | 14 | 1 | 6303 | 6303 ZZ | 6303-2RS | 6303-2RU | 13600 | 6550 | 0.115 | |
47 | 19 | 1.5 | 62303 | / | 62303-2RS | / | 13500 | 6550 | 0.149 | |
47 | 22.2 | 1.5 | 63303 | / | 63303-2RS | / | 9800 | 5684 | 0.176 | |
62 | 17 | 1.1 | 6403 | / | / | / | 22700 | 10800 | 0.271 | |
20 | 27 | 4 | 0.2 | 6704 | 6704 ZZ | 6704-2RS | 6704-2RU | 1790 | 1320 | 0.005 |
32 | 7 | 0.3 | 6804 | 6804 ZZ | 6804-2RS | 6804-2RU | 4000 | 2470 | 0.019 | |
32 | 10 | 0.3 | 63804 | 63804 ZZ | 63804-2RS | 63804-2RU | 4000 | 2470 | 0.024 | |
37 | 9 | 0.3 | 6904 | 6904 ZZ | 6904-2RS | 6904-2RU | 6350 | 3700 | 0.036 | |
42 | 8 | 0.3 | 16004 | / | / | / | 7900 | 4500 | 0.05 | |
42 | 12 | 0.6 | 6004 | 6004 ZZ | 6004-2RS | 6004-2RU | 9400 | 5000 | 0.07 | |
42 | 16 | 1 | 63004 | / | 63004-2RS | / | 9360 | 5000 | 0.088 | |
47 | 14 | 1 | 6204 | / | 6204-2RS | / | 12800 | 6600 | 0.106 | |
47 | 18 | 1.5 | 62204 | 6204 ZZ | 62204-2RS | 62204-2RU | 12700 | 6550 | 0.128 | |
47 | 20.6 | 1.5 | 63204 | / | 63204-2RS | / | 9800 | 6174 | 0.15 | |
52 | 15 | 1.1 | 6304 | / | 6304-2RS | / | 15900 | 7900 | 0.144 | |
52 | 21 | 2 | 62304 | 6304 ZZ | 62304-2RS | 62304-2RU | 15900 | 7800 | 0.197 | |
52 | 22.2 | 2 | 63304 | / | 63304-2RS | / | 11466 | 7056 | 0.21 | |
72 | 19 | 1.1 | 6404 | / | 6404-2RS | / | 31000 | 15200 | 0.408 | |
22 | 44 | 12 | 0.6 | 60/22 | 60/22 ZZ | 60/22-2RS | 60/22-2RU | 9400 | 5050 | 0.074 |
50 | 14 | 1 | 62/22 | 62/22 ZZ | 62/22-2RS | 62/22-2RU | 13900 | 6950 | 0.12 | |
56 | 16 | 1.1 | 63/22 | 63/22 ZZ | 63/22-2RS | 63/22-2RU | 18400 | 9250 | 0.176 | |
25 | 32 | 4 | 0.2 | 6705 | 6705 ZZ | 6705-2RS | 6705-2RU | 1930 | 1550 | 0.006 |
37 | 7 | 0.3 | 6805 | 6805 ZZ | 6805-2RS | 6805-2RU | 4300 | 2950 | 0.022 | |
37 | 10 | 0.3 | 63805 | 63805 ZZ | 63805-2RS | 63805-2RU | 4300 | 2950 | 0.032 | |
42 | 9 | 0.3 | 6905 | 6905 ZZ | 6905-2RS | 6905-2RU | 7000 | 4500 | 0.041 | |
47 | 8 | 0.3 | 16005 | / | / | / | 6950 | 5650 | 0.06 | |
47 | 12 | 0.6 | 6005 | 6005 ZZ | 6005-2RS | 6005-2RU | 10100 | 5850 | 0.079 | |
47 | 16 | 1 | 63005 | / | 63005-2RS | / | 11200 | 6550 | 0.1 | |
52 | 15 | 1 | 6205 | 6205 ZZ | 6205-2RS | 6205-2RU | 14000 | 7900 | 0.128 | |
52 | 18 | 1.5 | 62205 | / | 62205-2RS | / | 14000 | 7800 | 0.146 | |
52 | 20.6 | 1.5 | 63205 | / | 63205-2RS | / | 10584 | 6860 | 0.175 | |
62 | 17 | 1.1 | 6305 | 6305 ZZ | 6305-2RS | 6305-2RU | 23600 | 12100 | 0.232 | |
62 | 24 | 2 | 62305 | / | 62305-2RS | / | 22500 | 11600 | 0.32 | |
62 | 25.4 | 2 | 63305 | / | 63305-2RS | / | 14700 | 9800 | 0.315 | |
80 | 21 | 1.5 | 6405 | / | / | / | 40000 | 20100 | 0.528 |
d 17~35mm
Praecipuae Dimensiones (mm) | Exemplar | Cr(N) | Cor(N) | pondus (g) | ||||||
d | D | B | r | Open | Cap ferreum | Contactus cap | Non-Contact | |||
28 | 52 | 12 | 0.6 | 60/28 | 60/28 ZZ | 60/28-2RS | 6028-2RU | 12500 | 7400 | 0.098 |
58 | 16 | 1 | 62/28 | 62/28 ZZ | 62/28-2RS | 62/28-2RU | 17900 | 9750 | 0.175 | |
68 | 16 | 1.1 | 63/28 | 63/28 ZZ | 63/28-2RS | 63/28-2RU | 26800 | 14000 | 0.287 | |
30 | 37 | 4 | 0.2 | 6706 | 6706 ZZ | 6706-2HS | 6706-2RU | 2050 | 1780 | 0.008 |
42 | 7 | 0.3 | 6806 | 6805 ZZ | 6806-2RS | 6806-2RU | 4500 | 3400 | 0.0026 | |
42 | 10 | 0.3 | 63806 | 63806 ZZ | 63806-2HS | 63806-2RU | 4500 | 3400 | 0.026 | |
47 | 9 | 0.3 | 6906 | 6906 ZZ | 6906-2HS | 6906-2RU | 7250 | 5000 | 0.045 | |
55 | 9 | 0.3 | 16006 | / | / | / | 9950 | 6550 | 0.085 | |
55 | 13 | 1 | 6006 | 6006 ZZ | 6006-2RS | 6006-2RU | 13200 | 8300 | 0.117 | |
55 | 19 | 1.5 | 63006 | / | 63006-2RS | / | 13300 | 8300 | 0.159 | |
62 | 16 | 1 | 6006 | 6706 ZZ | 6206-2RS | 6206-2RU | 19500 | 11300 | 0.199 | |
62 | 20 | 1.5 | 62206 | / | 62206-2RS | / | 19500 | 11200 | 0.242 | |
62 | 23.8 | 1.5 | 63206 | / | 63206-2RS | / | 14700 | 9800 | 0.28 | |
72 | 19 | 1.1 | 6306 | 6306 ZZ | 6306-2RS | 6306-2RU | 26700 | 15000 | 0.346 | |
72 | 27 | 2 | 62306 | / | 62306-2RS | / | 28100 | 16000 | 0.485 | |
72 | 30.2 | 2 | 63306 | / | 63306-2RS | / | 19600 | 13426 | 0.53 | |
90 | 23 | 1.5 | 6460 | / | / | / | 43500 | 23800 | 0.72 | |
32 | 58 | 13 | 1 | 60/32 | 60/32 ZZ | 60/32-2RS | 60/32-2RU | 15100 | 9150 | 0.129 |
65 | 17 | 1 | 62/32 | 62/32 ZZ | 62/32-2RS | 62/32-2RU | 22400 | 13100 | 0.23 | |
75 | 20 | 1.1 | 63/32 | 63/32 ZZ | 63/32-2RS | 63/32-2RU | 30000 | 16200 | 0.382 | |
35 | 44 | 5 | 0.3 | 6707 | 6707 ZZ | 6707-2RS | 6707-2RU | 1862 | 1637 | 0.15 |
47 | 7 | 0.3 | 6807 | 6807 ZZ | 6807-2RS | 6807-2RU | 4900 | 4000 | 0.029 | |
55 | 10 | 0.6 | 6907 | 6907 ZZ | 6907-2RS | 69C7-2RU | 10400 | 7150 | 0.073 | |
62 | 9 | 0.3 | 16007 | / | / | / | 11700 | 8150 | 0.11 | |
62 | 14 | 1 | 6007 | 6007 ZZ | 6007-2RS | 6007-2RU | 16000 | 10300 | 0.156 | |
62 | 20 | 1.5 | 63007 | 63007-2RS | / | 15900 | 10200 | 0.21 | ||
72 | 17 | 1.1 | 6207 | 6207 ZZ | 6207-2RS | 6207-2RU | 25700 | 15300 | 0.28 | |
72 | 23 | 2 | 62207 | / | 62207-2RS | / | 25500 | 15300 | 0.435 | |
72 | 27 | 2 | 63207 | / | 63207-2RS | / | 19404 | 12740 | 0.435 | |
80 | 21 | 1.5 | 6307 | 6307 ZZ | 6307-2RS | 6307-2RU | 33500 | 19100 | 0.457 | |
80 | 31 | 2.5 | 62307 | / | 62307-2RS | / | 33200 | 19000 | 0.67 | |
80 | 34.9 | 2.5 | 63307 | / | 63307-2RS | / | 23520 | 16170 | 0.71 | |
100 | 25 | 1.5 | 6407 | / | / | / | 55000 | 31000 | 0.936 |
d 40~ 70mm
Praecipuae Dimensiones (mm) | Exemplar | Cr(N) | Cor(N) | pondus (g) | ||||||
d | D | B | r | Open | Cap ferreum | Contactus cap | Non-Contact | |||
40 | 50 | 6 | 0.3 | 6708 | 6708 ZZ | 6708-2RS | 6708-2RU | 2519 | 2234 | 0.023 |
52 | 7 | 0.3 | 6808 | 6808 ZZ | 6808-2RS | 6808-2RU | 5050 | 4350 | 0.033 | |
62 | 12 | 0.6 | 6908 | 6908 ZZ | 6908-2RS | 6908-2RU | 13700 | 9900 | 0.109 | |
68 | 9 | 0.3 | 16008 | / | / | 11100 | 8550 | 0.125 | ||
68 | 15 | 1 | 6008 | 6008 ZZ | 6008-2RS | 6008-2RU | 16800 | 11500 | 0.194 | |
68 | 21 | 1.5 | 63008 | / | 63008-2RS | / | 16800 | 11600 | 0.259 | |
80 | 18 | 1.1 | 6208 | 6208 ZZ | 6208-2RS | 6208-2RU | 29100 | 17900 | 0.366 | |
80 | 23 | 2 | 62208 | / | 62208-2RS | / | 30700 | 19000 | 0.45 | |
80 | 30.2 | 2 | 63208 | / | 63208-2RS | / | 20580 | 14210 | 0.435 | |
90 | 23 | 1.5 | 6308 | 6308 ZZ | 6308-2RS | 6308-2RU | 40500 | 24100 | 0.633 | |
90 | 33 | 2.5 | 62308 | / | 62308-2RS | / | 41000 | 24000 | 0.91 | |
90 | 36.5 | 2.5 | 63308 | / | 63308-2RS | / | 29400 | 20482 | 1.02 | |
110 | 27 | 2 | 6408 | / | / | 63500 | 36500 | 1.2 | ||
45 | 55 | 6 | 0.3 | 6709 | 6709 ZZ | 6709-2RS | 6709-2RU | 2577 | 2401 | 0.025 |
58 | 7 | 0.3 | 6809 | 6809 ZZ | 6809-2RS | 6809-2RU | 6400 | 5500 | 0.04 | |
68 | 12 | 0.6 | 6909 | 6909 ZZ | 6909-2RS | 6909-2RU | 14100 | 10900 | 0.122 | |
75 | 10 | 0.6 | 16009 | / | / | / | 12900 | 10500 | 0.17 | |
75 | 16 | 1 | 6009 | 6009 ZZ | 6009-2RS | 6009-2RU | 21000 | 15200 | 0.246 | |
75 | 23 | 1.5 | 63009 | / | 63009-2RS | / | 20800 | 14600 | 0.345 | |
85.0 | 19 | 1.1 | 6209 | 6209 ZZ | 6209-2RS | 6209-2RU | 32500 | 20500 | 0.407 | |
85.0 | 23 | 2 | 62209 | / | 62209-2RS | / | 33200 | 21600 | 0.485 | |
85.0 | 30.2 | 2 | 63209 | / | 63209-2RS | / | 22540 | 15680 | 0.64 | |
100.0 | 25 | 1.5 | 6309 | 6309 ZZ | 6309-2RS | 6309-2RU | 53000 | 32000 | 0.833 | |
100.0 | 36 | 2.5 | 62309 | / | 62309-2RS | / | 52700 | 31500 | 1.19 | |
100.0 | 39.7 | 2.5 | 63309 | / | 63309-2RS | / | 37240 | 27440 | 1.3 | |
120.0 | 29 | 2 | 6409 | / | / | 77500 | 45000 | 1.55 | ||
50 | 62.0 | 6 | 0.3 | 6710 | 6710 ZZ | 6710-2RS | 6710-2RU | 2666 | 2636 | 0.064 |
65.0 | 7 | 0.3 | 6810 | 6810 ZZ | 6810-2RS | 6810-2RU | 6600 | 6050 | 0.052 | |
72.0 | 12 | 0.6 | 6910 | 6910 ZZ | 6910-2RS | 6910-2RU | 14500 | 11700 | 0.127 | |
80.0 | 10 | 0.6 | 16010 | / | / | / | 16100 | 13100 | 0.18 | |
80.0 | 16 | 1 | 6010 | 6010ZZ | 6010-2RS | 6010-2RU | 21800 | 16600 | 0.264 | |
80.0 | 23 | 1.5 | 63010 | / | 63010-2RS | / | 21600 | 16000 | 0.37 | |
90.0 | 20 | 1.1 | 6210 | 6210 ZZ | 6210-2RS | 6210-2RU | 35000 | 23200 | 0.463 | |
90.0 | 23 | 2 | 62210 | / | 62210-2RS | / | 35100 | 23200 | 0.535 | |
90.0 | 30.2 | 2 | 63210 | / | 63210-2RS | / | 24500 | 18130 | 0.675 | |
110.0 | 27 | 2 | 6310 | 6310 ZZ | 6310-2RS | 6310-2RU | 62000 | 38100 | 1.07 | |
110.0 | 40 | 2 | 62310 | / | 62310-2RS | / | 61800 | 38000 | 1.55 | |
130.0 | 31 | 2.1 | 6410 | / | / | / | 87500 | 52000 | 1.91 |
d 40~ 70mm
Praecipuae Dimensiones (mm) | Exemplar | Cr(N) | Cor(N) | pondus (g) | ||||||
d | D | B | r | Open | Cap ferreum | Contactus cap | Non-Contact | |||
55 | 68 | 7 | 0.3 | 6711 | / | / | / | 4850 | 5060 | 0.055 |
72 | 9 | 0.3 | 6811 | 6811 ZZ | 6811-2RS | 6811-2RU | 9100 | 8450 | 0.083 | |
80 | 13 | 1 | 6911 | 6911 ZZ | 6911-2RS | 6911-2RU | 16000 | 13200 | 0.177 | |
90 | 11 | 0.6 | 16011 | / | / | / | 15000 | 13500 | 0.26 | |
90 | 18 | 1.1 | 6011 | 6011 ZZ | 6011-2RS | 6011-2RU | 28300 | 21300 | 0.384 | |
100.0 | 21 | 1.5 | 6211 | 6211 ZZ | 6211-2RS | 6211-2RU | 43500 | 29300 | 0.607 | |
100.0 | 25 | 1.5 | 62211 | / | 62211-2BS | / | 43600 | 29000 | 0.7 | |
120.0 | 29 | 2 | 6311 | 6311 ZZ | 6311-2RS | 6311-2RU | 71500 | 44500 | 1.37 | |
120.0 | 43 | 2 | 62311 | / | 62311-2RS | / | 71500 | 45000 | 1.95 | |
140.0 | 33 | 2.1 | 6411 | / | / | / | 101000 | 62000 | 2.32 | |
60 | 75 | 7 | 0.3 | 6712 | / | / | / | 5900 | 6325 | 0.07 |
78 | 10 | 0.3 | 6812 | 6812 ZZ | 681-2RS | 68122RU | 11500 | 10600 | 0.106 | |
85 | 13 | 1 | 6912 | 6912 ZZ | 6912-2RS | 6912-2RU | 19400 | 16200 | 0.191 | |
95 | 11 | 0.6 | 16012 | / | / | / | 16200 | 14300 | 0.28 | |
95 | 18 | 1.1 | 6012 | 6012 ZZ | 6012-2RS | 6012-2RU | 29500 | 23200 | 0.418 | |
110.0 | 22 | 1.5 | 6212 | 6212 ZZ | 621-2RS | 6212-2RU | 52500 | 36000 | 0.783 | |
110.0 | 28 | 1.5 | 62212 | / | 62212-2BS | / | 47500 | 32500 | 0.97 | |
130.0 | 31 | 2 | 6312 | 6312 ZZ | 6312-2RS | 631-22RU | 82000 | 52000 | 1.7 | |
130.0 | 46 | 2 | 62312 | / | 62312-2RS | / | 81900 | 52000 | 2.5 | |
130.0 | 35 | 2.1 | 6412 | / | / | / | 109000 | 70000 | 2.79 | |
65 | 85 | 10 | 0.6 | 6813 | 6813 ZZ | 6813-2RS | 6813-2RU | 12000 | 11500 | 0.125 |
90 | 13 | 1 | 6913 | 6913 ZZ | 6913-2RS | 6913-2RU | 17400 | 16000 | 0.2 | |
100.0 | 11 | 0.6 | 16013 | / | / | / | 20500 | 18600 | 0.3 | |
100.0 | 18 | 1.1 | 6013 | 6013 ZZ | 6013-2RS | 6013-2RU | 30500 | 25200 | 0.438 | |
120.0 | 23 | 1.5 | 6213 | 6213 ZZ | 6213-2BS | 6213-2RU | 57000 | 40000 | 0.99 | |
120.0 | 31 | 1.5 | 62213 | / | 62213-2RS | / | 55900 | 40500 | 1.25 | |
140.0 | 33 | 2.1 | 6313 | 6313 ZZ | 6313-2RS | 6313-2RU | 92500 | 59500 | 2.08 | |
140.0 | 48 | 2 | 62313 | / | 62313-2RS | / | 92300 | 60000 | 3 | |
160.0 | 37 | 2.1 | 6413 | / | / | / | 118000 | 78500 | 3.36 | |
70 | 85 | 7 | 0.3 | 6714 | / | / | / | 6100 | 7015 | 0.08 |
90 | 10 | 0.6 | 6814 | 6814 ZZ | 6814-2RS | 6814-2RU | 12100 | 11900 | 0.135 | |
100.0 | 16 | 1 | 6914 | 6914 ZZ | 6914-2RS | 6914-2RU | 23500 | 21100 | 0.327 | |
110.0 | 13 | 0.6 | 16014 | / | / | / | 26800 | 23600 | 0.433 | |
110.0 | 20 | 1.1 | 6014 | 6014 ZZ | 6014-2RS | 6014-2RU | 38000 | 31000 | 0.607 | |
125.0 | 24 | 1.5 | 6214 | 6214 ZZ | 6214-2RS | 6214-2RU | 62000 | 44000 | 1.07 | |
125.0 | 31 | 1.5 | 62214 | / | 62214-2RS | / | 60500 | 45000 | 1.3 | |
150.0 | 35 | 2.1 | 6314 | 6314 ZZ | 6314-2RS | 6314-2RU | 104000 | 68000 | 2.52 | |
150.0 | 51 | 2 | 62314 | / | 62314-2RS | / | 104000 | 68000 | 3.55 | |
180.0 | 42:00 | 3 | 6414 | / | / | / | 145000 | 105000 | 5 |
In praecisione apparatus geminus row pila gestus cum unique structuram consilio firmum perficientur facti core tradenda components in numerosis. Comparari ad traditional una-row GRIFER, qui offerun...
READ MOREQuid est genus LR coronari exterius anulum? In Typus LR coronatus exterius anulum Est pars in quadam gestus, saepe in applications ubi reducing friction et tractantem gravibus onerat...
READ MORECum fit ad summus celeritas machinery, sive in automotive machinas, industriae turbines, aut praecisione robotics-in perficientur de alta sulcus pila afferentem potest facere aut confractus ...
READ MORETrack Rollers Ball Gestus Sunt discrimine components in gravibus machinery, cursus lenis motus et onus distribution in apparatu sicut excavators, bulldozers et TRADUYOR systems. Tamen, dura o...
READ MOREUt nucleus partium instrumentorum mechanicorum, gestus et qualitas gestuum directe se habent ad efficientiam et stabilitatem totius systematis operantis. Ningbo Wanshun Co. Ferens, Ltd., dux in Sinis industriam gerens, magnam recognitionem et fiduciam in mercatis domesticis et externis cum suis technologiarum productionibus optimam, severam qualitatem administrationis et lineas uberes uberes, praesertim in campo profundae sulci pila gestus.
Alta sulcus pila gestus , cum simplicibus structura , magna onere capacitate et frictione humili , in variis instrumentis mechanicis late adhibentur et inexpedita factae sunt pars tradendi ratio . Ningbo Wanshun Ferens Co, Ltd. bene novit momentum motus pilae sulci profundae, ideo creditum est ut summus qualitas et summus praecisio globulus sulcus altae gestus ad arctissimas necessitates diversarum industriarum ad systemata transmissionis referenda committatur.
In Ningbo Wanshun productum matrix, 42 et 43 series pilae sulci profunda gestus factae sunt prima electio multorum clientium ob egregiam observantiam et qualitatem certam. Hae duae series productorum non solum signa generalia internationalia conveniunt, sed etiam stricte moderantur electionem materialem, processum imperium, inspectionem et qualitates alias rationes, ut singulae gestus in variis condicionibus operandi stabiliter operari possint. Eodem tempore, ut necessitatibus personalibus diversarum clientium occurreret, Ningbo Wanshun etiam 42 et 43 seriem praebet globum sulcum altum cum variis specificationibus et conformationibus, ut fructus late adhiberi possint in autocinetis, motoribus, machinationibus agriculturae; machinamenta et alia camporum instrumenta.
Cum societas tendens ad productionem magni momenti gestus, Ningbo Wanshun semper innovationem technologicam tamquam nucleum vim impulsionis pro societatis evolutione spectavit. In producendo processu profundae sulci pilae gestus, societas continuum productio instrumenti et technologiae introducit, optimizat processum productionis et efficientiam et qualitatem productivam meliorem. Eodem tempore, societas systematis R&D perfectam etiam instituit, actuose cooperatur cum notissimis universitatibus domesticis et externis et investigationibus scientificis institutis ut technicis difficultatibus coniunctim superentur et technologicum progressum promoveant in profunda sulca pila quae industriam afferat.
Qualitas est vita Ningbo Wanshun. Societas semper accipit "compensationem emptoris tamquam centrum" ut nucleus notio qualitatis administrationis, stricte adducit signa qualitatis administrationis ISO9001, et stricte moderatur omnes nexus sicut procuratio rudis materiae, productionis et processus, et operis inspectionis perfecti. Societas etiam instructa est ad probationem provectarum armorum et ad probationem professionalis equos ad probationem comprehensivam variorum indicium effecti perficiendi instructam, ut singula certae pilae sulci altae gestus vel signa industriae vel etiam excedant. Hoc est pertinax persecutio qualitatis quae Ningbo Wanshun altam rimam globus vicit in foro bonam famam et late recognitionem.
Futurum spectans, Ningbo Wanshun Ferens Co., Ltd. perget negotia philosophiae conservare "amicos facere ante negotia, mutuam utilitatem et communem progressionem" facere, ac amplam et altissimam cum amicis cooperationem ab omnibus incessus exsequi. domi militiaeque vita apertiore animo ac pragmaticis actionibus. Societas firmiter credit se per continuas conatus et innovationes, ad progressionem fabricarum industrialium in patria et etiam in mundo. Eodem tempore, etiam societas prospicit operandi pares cum sociis plus unanimis ad melius futurum simul creandum.
